Mixing Mill


High Quality and Precise Mixing

AMCL offers a wide range of two roll mills for processing rubber & plastic material in various sizes & applications, viz., mixing, cracking, sheeting, warming, feeding, compounding etc.

Structure

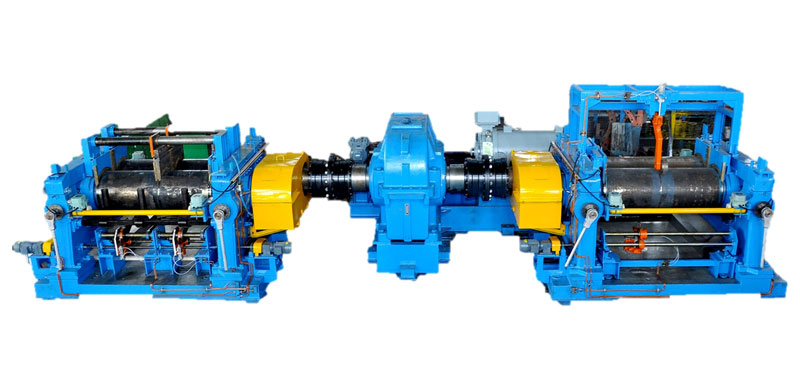

The Mill is assembled completely with side frames, caps, rolls, bearing housing with lead bronze bushes, safety arrangements, nip gap assembly, main motor, brake, gear box, etc. on a rigid bed – plate so that complete set is installed on a leveled cement floor with foundation bolts / vibromounts. The mill shall have common base for mounting mill and drive accessories.

Components of Mixing Mill

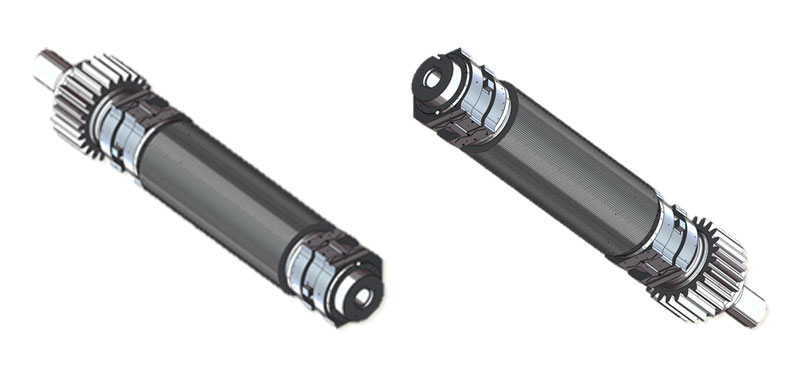

  1. Rolls
  2. Gear Box
  3. Rotary joins
  4. Safety cover
  5. Motor
  6. Guide Roller
  7. Thermal Indicator
  8. Lubrication Pump

Technical Data Sheet


Type

14” X 36”

16” X 42”

22” X 60”

26” X 84”

Working diameter of Rolls (mm) 356 406 560 560
Working lengths of rolls (mm) 702 1067 1524 2134
Working linear speed of front roll (RPM) 19.0 17.97 12.78 10.75
Max gap (mm) 12 12 12 12
Capacity per. Batch (kg) 35 60 90 250
Driving motor power (kw) 30 37 100 110
Overall Length (mm) 3456 4250 6120 8134
Overall Height (mm) 1425 1850 2280 3124
Overall Width (mm) 1610 1870 2000 2184
Bearings Bush Type Bearing/ Anti Friction Roller Bearings
  • Dynamic braking of motor for emergency stoppage of the Mill. The rolls will stop within 1/3 rd. revolution.
  • Emergency shutdown (STOP) switches operated by wire rope on each side of the mill will be provided.
  • Chest bar arrangement is provided for the safety of a operator.
  • Foot switches are also provided for the stoppage of the Mill.
